Modular Wall Mounted Sign Supports / Specifications

Weight Bearing Information – Recommended safety working load limit per standoff diameter

Standoff Diameter

Aluminum

Brass

Stainless

(per one fixing mounted on drywall)
12mm (1/2 inch)5 lb (2 kg)5 lb (2 kg)
15mm (5/8 inch)8 lb (3.5 kg)8 lb (3.5 kg)8 lb (3.5 kg)
20mm (3/4 inch)

15 lb (6.8 kg)15 lb (6.8 kg)15 lb (6.8 kg)
25mm (1/2 inch)

25 lb (11 kg)25 lb (11 kg)25 lb (11 kg)
32mm (1-1/4 inch)

25 lb (11 kg)
38mm (1-1/2 inch)

30 lb (13.6 kg)

Note: Additional blocking in the wall may be required for mounting heavier panels.

Composition and Materials

The modular supports are versatile, sturdy, and easy to install. They consist of quality components – sign/panel standoff supports of various sizes, screw caps, support joiners, four-way connectors, and other accessories that can be used for mounting simple signs or more elaborate projects such as multi-layered or double-depth display designs. Fittings are made of high-grade aluminum with a standard satin anodized finish or durable solid brass alloy UNS C3604/CZ121 (CuZN39Pb3) with a standard satin chrome finish. Other custom finishes such as clear or color anodized, polished chrome, or brushed (warm) nickel plating are available upon request. Grub screws used for fittings are made of AISI 12L14 Carbon Steel (UNS G12144) and have a plastic tip of Nylon 6-6. All the metal components come with a 12-months warranty.

Colors and Finishes

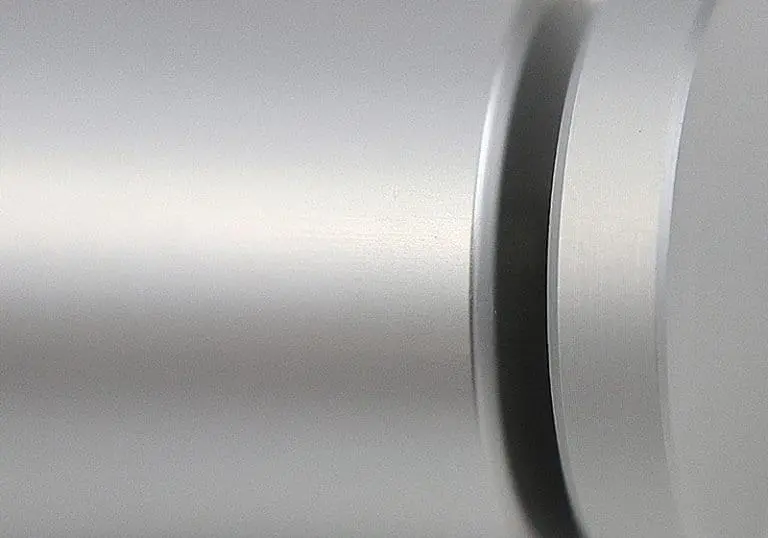

Satin Anodized Aluminum Finish / Fittings with Miter-Edge

Satin Anodized

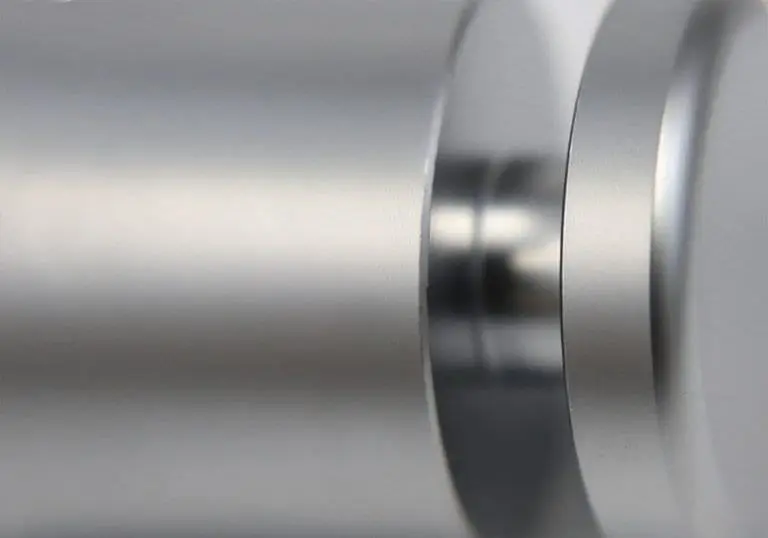

Satin Chrome Finish over Brass Alloy / Fittings with Round-Edge

Satin/Matte Chrome

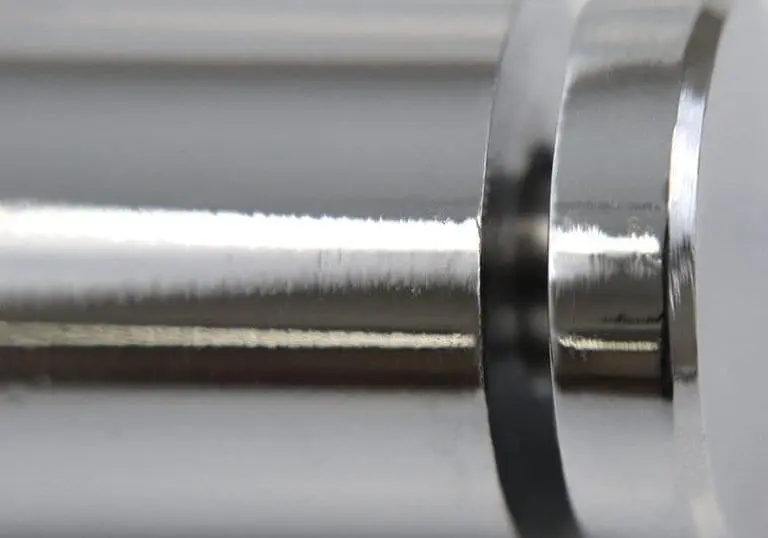

Polished Chrome Finish over Brass Alloy / Fittings with Round-Edge

Polished Chrome

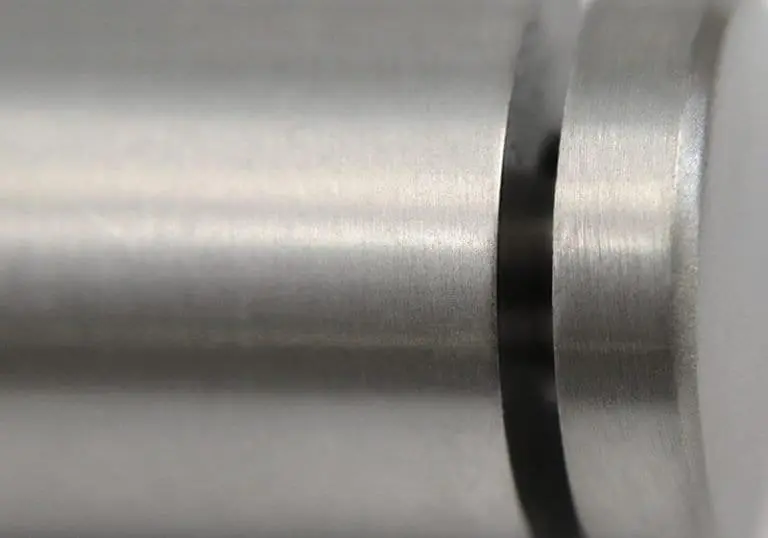

Brushed Nickel Warm Chrome Finish over Brass Alloy

Brushed Warm Nickel

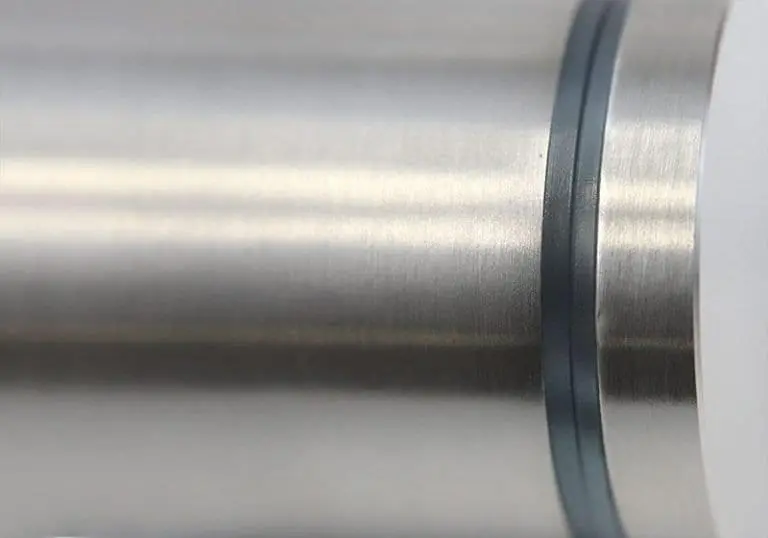

Matte Brushed Stainless Steel Finish

Brushed Stainless Steel

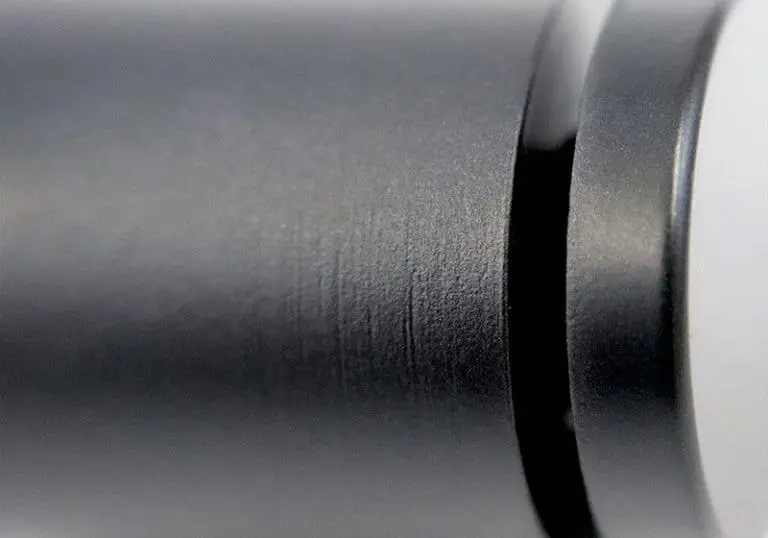

Black Powder Coated Finish over Aluminum / Fittings with Round-Edge

Black Powder Coated

*Current active links are for items available in stock. We are constantly updating our inventory of new items and finishes.

Product Limitations

Most sign and panel support system components perform well in all closed environments as long as they are not exposed to direct weathering such as rain, snow, moisture, etc. For marine or other high humidity environments, please request stainless steel type #SS303/304 or #SS316 standoff supports that have a higher corrosion resistance. Follow the instructions and weight-bearing limitation indicated on the technical data sheets.

Precautions / Performance and Safety

Use product properly, in a safe manner and for the application for which it was intended. Always check the installation surface to ensure the substrate is strong enough to hold the weight of the panel. All installation must be done with proper hardware and protective gear to ensure safety. Attachments must be properly installed and meet the recommended Safety Working Load Limit.

Environmental Considerations

Standard stock components are suggested and warranted for interior use only. Nova Display Systems practices sustainability and recycling. Most of our display systems are fabricated from non-ferrous recycling metals – aluminum, stainless steel, brass, bronze and copper alloys. With close to 100 percent recyclable content, these metals can be repeatedly recycled into similar or other products with no loss of quality, as reprocessing does not damage their molecular structure.
