Aluminum Edge-Grip Standoff Supports
Inexpensive, stylish and functional, the edge-grip standoffs are an alternative solution for mounting acrylic or glass panels, framed posters, mirrors, signage, or wall plaques. You do not need to drill a hole in your artwork or material to use this mounting product. Aluminum edge-grips have a satin anodized finish that captures attention and brings style to your space. Available to hold substrates from 4mm (5/32″) to 10mm (3/8″) thick.
WGS1622-6mm AL
Satin Anodized
Edge-Grip
Standoff Support
16mm (5/8″) Dia.
x 22mm (7/8″)
Length
4-6mm Thick Substrates
Edge-Grip
Standoff Support
16mm (5/8″) Dia.
x 22mm (7/8″)
Length
4-6mm Thick Substrates
WGS1622S-6mm AL
Satin Anodized
Edge-Grip
Standoff Support
16mm (5/8″) Dia.
x 22mm (7/8″)
Length
4-6mm Thick Substrates
Edge-Grip
Standoff Support
16mm (5/8″) Dia.
x 22mm (7/8″)
Length
4-6mm Thick Substrates
WGS1622D-6mm AL
Satin Anodized
Edge-Grip
Standoff Support
16mm (5/8″) Dia.
x 22mm (7/8″)
Length
4-6mm Thick Substrates
Edge-Grip
Standoff Support
16mm (5/8″) Dia.
x 22mm (7/8″)
Length
4-6mm Thick Substrates
WGS2025-7mm AL
Satin Anodized
Edge-Grip
Standoff Support
20mm (3/4″) Dia.
x 25mm (1″)
Length
4-7mm Thick Substrates
Edge-Grip
Standoff Support
20mm (3/4″) Dia.
x 25mm (1″)
Length
4-7mm Thick Substrates
WGS2028-10mm AL
Satin Anodized
Edge-Grip
Standoff Support
20mm (3/4″) Dia.
x 28mm (1-1/8″)
Length
8-10mm Thick Substrates
Edge-Grip
Standoff Support
20mm (3/4″) Dia.
x 28mm (1-1/8″)
Length
8-10mm Thick Substrates
WGS2045-7mm AL
Satin Anodized
Edge-Grip
Standoff Support
20mm (3/4″) Dia.
x 45mm (1-3/4″)
Length
4-7mm Thick Substrates
Edge-Grip
Standoff Support
20mm (3/4″) Dia.
x 45mm (1-3/4″)
Length
4-7mm Thick Substrates
WGS2048-10mm AL
Satin Anodized
Edge-Grip
Standoff Support
20mm (3/4″) Dia.
x 48mm (1-7/8″)
Length
8-10mm Thick Substrates
Edge-Grip
Standoff Support
20mm (3/4″) Dia.
x 48mm (1-7/8″)
Length
8-10mm Thick Substrates
WGS2050-7mm AL
Satin Anodized
Edge-Grip
Standoff Support
20mm (3/4″) Dia.
x 50mm (2″)
Length
4-7mm Thick Substrates
Edge-Grip
Standoff Support
20mm (3/4″) Dia.
x 50mm (2″)
Length
4-7mm Thick Substrates
WGS2054-10mm AL
Satin Anodized
Edge-Grip
Standoff Support
20mm (3/4″) Dia.
x 50mm (2-1/8″)
Length
8-10mm Thick Substrates
Edge-Grip
Standoff Support
20mm (3/4″) Dia.
x 50mm (2-1/8″)
Length
8-10mm Thick Substrates
WGR2028-7mm AL
Satin Anodized
Edge-Grip
Standoff Support
20mm (3/4″) Dia.
x 28mm (1-1/8″)
Length
4-7mm Thick Substrates
Edge-Grip
Standoff Support
20mm (3/4″) Dia.
x 28mm (1-1/8″)
Length
4-7mm Thick Substrates
Note: These edge-grip standoffs are made of solid aluminum and come as a two-part fitting with a wall plug and edge-grip standoff with nylon tipped set-screw. They are supplied in satin anodized finish as standard. Ideal for supporting name plates, signs, graphic panels, and decorative screens. Do not require drilling the substrate.
Specialized Accessories and Components
The double-sided edge grip supports are designed to hold smaller size sign blanks that require continuity. They have the ability to secure panels from two sides eliminating the need of using additional mounting supports.
COMPATIBLE ITEMS: WGS1622S-6, WGS1622D-6.
Brass projecting standoff supports are supplied as a three-part fitting with a standoff spacer/barrel, a wall anchor and a front clamp support that can be adjustable to any angle of slope and locked into position.
Allows multiple panels to be butted closely together using just one standoff support centrally mounted instead of four. It can hold up to 1/4” thick panels or two pieces of 1/8” thick acrylic without the need for drilling holes.
Brass Edge-Grip Standoff Supports
Ideal for applications that require interchangeable flexibility. They are great for mounting directional signs, identification signs, graphic displays and donor recognition wall plaques in lobbies, reception areas, offices, showrooms, exhibits, museums, etc. The edge grips don’t require drilling holes into substrates. They allow the panel to be gripped from sides or top and bottom and are available for panels up to 10mm (3/8″) thick. Exclusive use of brass, plated with a satin chrome finish makes them aesthetically pleasing and timeless.
WGR20-7mm
Satin Chrome
Edge-Grip
Standoff Support
20mm (3/4″) Dia.
x 26mm (1-1/32″)
Length
5-7mm Thick Substrates
Edge-Grip
Standoff Support
20mm (3/4″) Dia.
x 26mm (1-1/32″)
Length
5-7mm Thick Substrates
WGR20-10mm
Satin Chrome
Edge-Grip
Standoff Support
20mm (3/4″) Dia.
x 30mm (1-3/16″)
Length
8-10mm Thick Substrates
Edge-Grip
Standoff Support
20mm (3/4″) Dia.
x 30mm (1-3/16″)
Length
8-10mm Thick Substrates
WGR25-7mm
Satin Chrome
Edge-Grip
Standoff Support
20mm (3/4″) Dia.
x 28mm (1-1/8″)
Length
5-7mm Thick Substrates
Edge-Grip
Standoff Support
20mm (3/4″) Dia.
x 28mm (1-1/8″)
Length
5-7mm Thick Substrates
WGR25-10mm
Satin Chrome
Edge-Grip
Standoff Support
20mm (3/4″) Dia.
x 32mm (1-1/4″)
Length
8-10mm Thick Substrates
Edge-Grip
Standoff Support
20mm (3/4″) Dia.
x 32mm (1-1/4″)
Length
8-10mm Thick Substrates
WM09
Satin Chrome
Edge-Grip
Standoff Support
18mm (11/16″) Dia.
x 31mm (1-3/16″)
Length
5-7mm Thick Substrates
Edge-Grip
Standoff Support
18mm (11/16″) Dia.
x 31mm (1-3/16″)
Length
5-7mm Thick Substrates
WM09L
Satin Chrome
Edge-Grip
Standoff Support
18mm (11/16″) Dia.
x 56mm (2-3/16")
Length
5-7mm Thick Substrates
Edge-Grip
Standoff Support
18mm (11/16″) Dia.
x 56mm (2-3/16")
Length
5-7mm Thick Substrates
P01
Decorative
Base Support
Plate
Use with WM09/WM09L
Edge-Grip Supports
Base Support
Plate
Use with WM09/WM09L
Edge-Grip Supports
Note: These edge-grip standoffs are made of solid brass and come as a two-part or three-part fitting with a wall plug, an edge-grip standoff with nylon tipped set-screw, and a front cover cap. They are supplied in satin chrome finish as standard. Ideal for supporting name plates, signs, graphic panels, and decorative screens. Do not require drilling the substrate.
Sign/Panel Support Systems / Range of Accessories
The modular sign/panel standoff support system includes a variety of accessories such as screw-caps with longer studs, four way connecting hubs/spacers, standoff joiner, dual-grip standoff supports, desktop standoff supports, projecting panel clamp, and edge-grip supports. Ideal for applications that require interchangeable flexibility.
Standoff Joiner/
Panel Spacer for
Longer Supports
Dual-Grip
Sign Standoff
Support
Standoff Gripper
Support/
Screw Cap Set
Wall-Standoff
Panel Clamp
Long Projection
Decorative
Cover Caps and
Screw Stud-Caps
Edge-Grip
Standoff
Long Projection
Four Way Hub/
Spacer
Butted Panels
Desktop
Standoff
Supports
Stainless Steel Edge-Grip Standoff Supports
Designed to hold glass, acrylic, stock plastic, wood, metal, and other panels to surfaces without the need to drill the panels. They require mounting of signage or display panels from top-bottom, or side-bottom fashion. Stainless steel edge grips have a brushed satin finish. They are adjustable and can hold 3mm (1/8″), 6mm (1/4″), 10mm (3/8″), and 12.5mm (1/2″) thick material.
WSS-EG16
Stainless Steel
Edge-Grip
Standoff Support
16mm (5/8″) Dia.
x 20mm (3/4″)
Length
3-7mm Thick Substrates
Edge-Grip
Standoff Support
16mm (5/8″) Dia.
x 20mm (3/4″)
Length
3-7mm Thick Substrates
WSS-EG20
Stainless Steel
Edge-Grip
Standoff Support
20mm (3/4″) Dia.
x 20mm (3/4″)
Length
5-10mm Thick Substrates
Edge-Grip
Standoff Support
20mm (3/4″) Dia.
x 20mm (3/4″)
Length
5-10mm Thick Substrates
WSS-EG25
Stainless Steel
Edge-Grip
Standoff Support
25mm (1″) Dia.
x 25mm (1″)
Length
7-12mm Thick Substrates
Edge-Grip
Standoff Support
25mm (1″) Dia.
x 25mm (1″)
Length
7-12mm Thick Substrates
Note: These edge-grip standoffs are made of solid stainless steel #SS201 and are supplied in satin brushed finish as standard. Use for supporting tempered glass, acrylic or similar substrates and does not require drilling. Not recommended for outdoor use.
Use these standoff wall mounted info/poster easy access folded frames and literature holders to display information, certificates, photos, posters, brochures, magazines, and other promotional material… Read More ❯

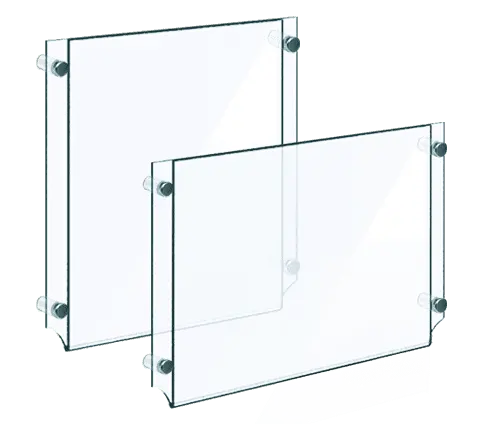

Acrylic Easy Access Info/Poster Holders

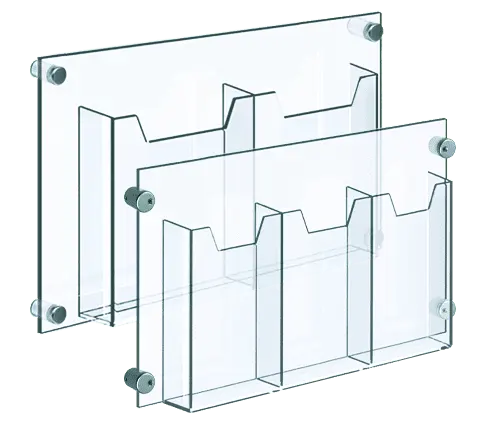

Acrylic Single/Multi-Pocket Brochure Holders
A wide range of acrylic poster frames and sign blanks — available in clear, non-glare, frost, or matte black/white colors for use with standoff supports. Use to create poster frames, graphic panels, and signage… Read More ❯
Acrylic Frames for Posters and Graphics

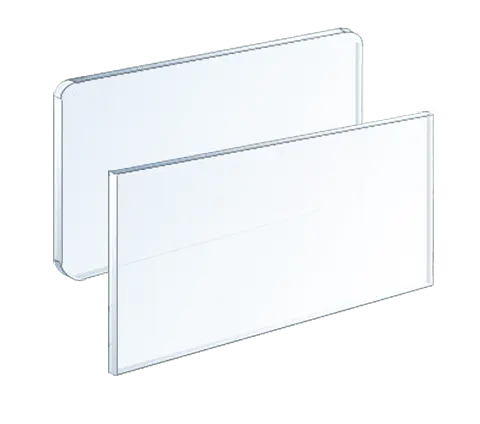

Acrylic Blanks for Signage
Acrylic floating shelves, box shelf/frame displays, and showcases made of clear or frost acrylic and designed for use with wall mounted standoffs. Use to display collectibles, promotional products, or lightweight merchandise… Read More ❯

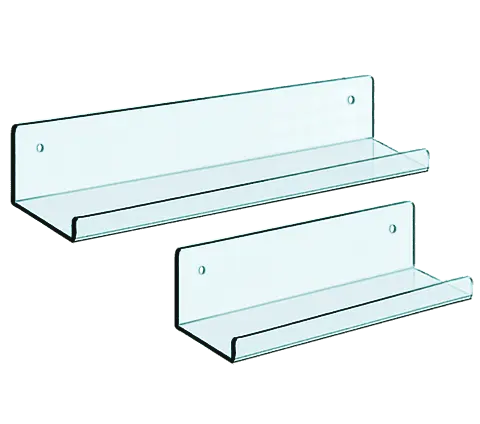

Acrylic Floating Shelves / Narrow Wall Ledge Style

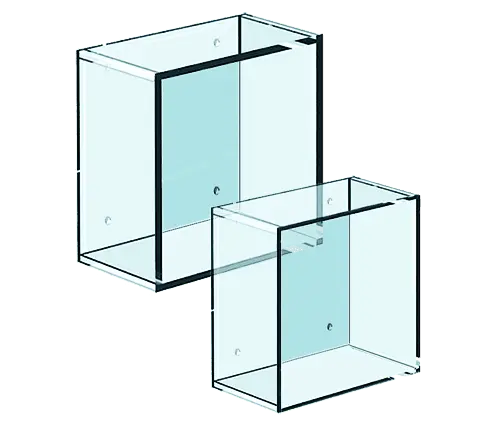

Acrylic Shadow Box Shelf/Frame Displays
