Rails/Tracks, Installation Accessories, and Cable Suspension Kits
The Rail/Track Tension Cable System features 1.5mm diameter suspension cable kits, equipped with spring tensioners and quick-fit toggles for straightforward attachment to the top and bottom channels. This system is ideal for standard ceiling-to-floor or wall-to-wall suspended setups. The inclusion of tracks adds versatility to your cable displays, facilitating easy changes and updates in a cost-effective manner. The kits come with 4-meter (13′ 1-1/2″) long cables, which can be customized or shortened on-site during installation. Should your project require it, we can also provide kits with extended cables or additional crimped cables up to 8 meters (26′ 4″) or more, upon request.
AC
Rebate Channel
for Ceilings
14.5mm (7/16”) x
19mm (3/4”) Section
for Ceilings
14.5mm (7/16”) x
19mm (3/4”) Section
ACT
Threshold Channel
for Floors
8mm (5/16”) x
38mm (1-1/2”) Section
for Floors
8mm (5/16”) x
38mm (1-1/2”) Section
PH1028
Single-Sided
Rail/Track
28mm (1-1/8”) x
19mm (3/4”) Section
Rail/Track
28mm (1-1/8”) x
19mm (3/4”) Section
PH1035
Double-Sided
Rail/Track
35mm (1-3/8”) x
19mm (3/4”) Section
Rail/Track
35mm (1-3/8”) x
19mm (3/4”) Section
PH1005
Double-Sided
Rail/Track
45mm (1-13/16") x
19mm (3/4”) Section
Rail/Track
45mm (1-13/16") x
19mm (3/4”) Section
MSB-25
Wall
Bracket
for Mounting
Double-Sided Rails
Bracket
for Mounting
Double-Sided Rails
PC01-Q
Quick-Fit
Toggle
for Cable-to-Rail
Attachment
Toggle
for Cable-to-Rail
Attachment
QFT/SS
Quick-Fit
Toggle
for Cable-to-Rail
Attachment
(heavy-duty)
Toggle
for Cable-to-Rail
Attachment
(heavy-duty)
PA8
Toggle
End-Fit
for Cable-to-Rail
Attachment
End-Fit
for Cable-to-Rail
Attachment
PA9
Toggle
Side-Fit
for Cable-to-Rail
Attachment
Side-Fit
for Cable-to-Rail
Attachment
Note: Aluminum rails are offered in lengths of 4, 6, or 8 feet, with custom sizes available upon request. For installation, rail/track systems must be securely mounted to a solid structure or blocking. This includes attaching tracks to ceiling struts, structures above the ceiling line, or wall studs. The spacing for anchoring depends on the track’s sectional size, requiring anchors at least every 12 inches for ceiling installations and every 32 inches for wall applications. The overall durability and capacity of the assembly are contingent upon the secure attachment of the anchors to the ceiling or wall. The total weight the display can support is determined by both the strength of the individual anchors and the number of mounting points used.
Cable Suspension Kits for Rail/Track Assembly

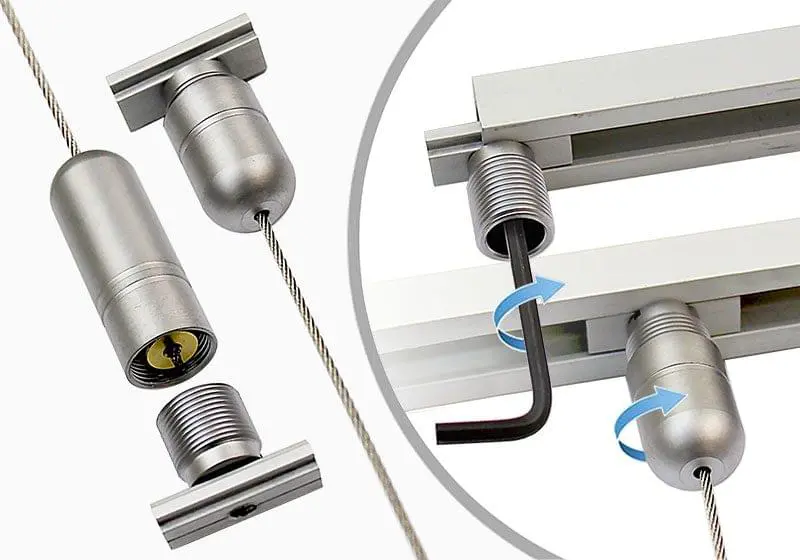

Use the CQQ Quick-Fit Cable Kit for suspending displays between top-to-bottom, ceiling-to-floor, or wall-to-wall mounted rails/tracks. Supplied with two quick-fit toggles, a spring tensioner for easy inside-channel attachment, and 4 meter (13’-1-1/2”) long cables that can be adjusted and shortened in place during installation. Quick-fit toggles enables for quick repositioning or removal.
Use the CA4 or C101-4M Basic Cable Kits for suspending displays between top-to-bottom, ceiling-to-floor, or wall-to-wall mounted tracks. Supplied with top/bottom fixings and 4 meter (13’-1-1/2”) long cables that can be adjusted and shortened in place during installation. Use PA8 toggles to attach cables to channels. Basic cable sets are recommended for use with displays that do not require frequent updates.
Use the MSB-25 Wall Brackets and PA8 Toggles to mount the double-sided rails to wall. Position the MSB-25 brackets so it is covered by the rail. Aluminum rails/tracks are supplied in 48″, 60″, 72″, 84″, 96″ or custom lengths. Projection from wall — 25mm (1″) on channel center. Use 370 104 decorative end caps to finish the ends. Rails 72″ to 96″ lengths require at least four wall brackets for mounting.
Standard and Specialty Supports — Panel and Frame Presentations

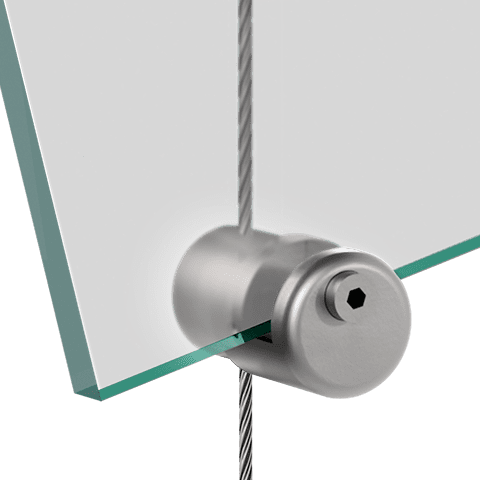

Standard supports are supplied in single or double-sided side-grip clamp support and top/bottom edge-grip support options. Use for holding acrylic holders, acrylic brochure holders, and acrylic panel/frame presentations. They are available in a few standard sizes to support 1/8”, 1/4”, 3/8” and 1/2” thick panels. Specialty supports are used for mounting aluminum frames, graphic holders, horizontal rods for banners/fabrics, picture frames, or any item fitted with P02 boss.
Side Clamp
Support
for Panels
Top/Bottom
Support
for Panels

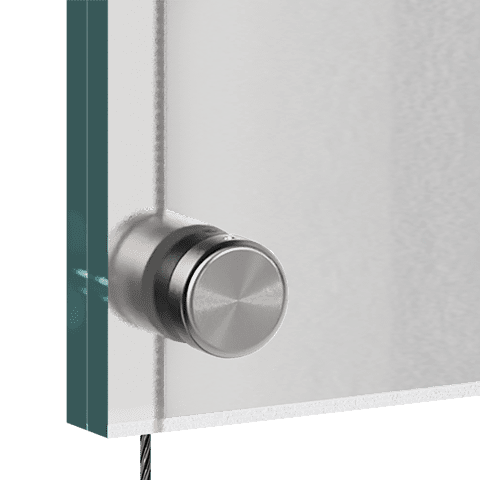

Support with
Stud-Cap
for Panels
Support with Boss
for Graphic
Holder
Support for
Aluminum
Frame
Support with Boss
for Wooden
Panel/Shelf
Support for
6mm and 10mm
Horizontal Rods
Hook Support
for Picture
Frame
Supports for Panels
CG03
Side Support
Single
up to 4mm (5/32″)
Single
up to 4mm (5/32″)
CG04
Side Support
Double
up to 4mm (5/32″)
Double
up to 4mm (5/32″)
CG01
Side Support
Single
up to 7mm (1/4″)
Single
up to 7mm (1/4″)
CG02
Side Support
Double
up to 7mm (1/4″)
Double
up to 7mm (1/4″)
CP103
Side Support
Single
up to 10mm (3/8″)
Single
up to 10mm (3/8″)
CP104
Side Support
Double
up to 10mm (3/8″)
Double
up to 10mm (3/8″)

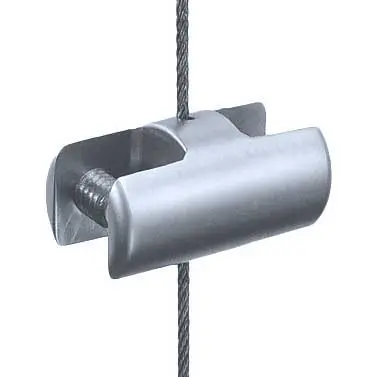

CG14
Side Support
Single
up to 12.5mm (1/2″)
Single
up to 12.5mm (1/2″)
CG09
Top/Bottom
Support
up to 7mm (1/4″)
Support
up to 7mm (1/4″)
CS13
Support w/Stud
Single
up to 7mm (1/4″)
Single
up to 7mm (1/4″)
CS23
Support w/Stud
Double
up to 7mm (1/4″)
Double
up to 7mm (1/4″)
Note: Use the side-grip supports to hold various substrates such as acrylic, tempered glass, lightweight or heavyweight cardstock, and plastics up to 10mm (3/8″) in thickness (larger panel supports to hold up to 12.5mm (1/2″) are also available). Use CS13 and CS23 supports with pre-drilled panels. Require panel hole size diameter of 6mm (15/64″) to accommodate for M4 threaded stud.
Specialty Supports
CS03
Support Single
w/P02 Boss
for Wooden
Panels and Shelves
w/P02 Boss
for Wooden
Panels and Shelves
CS04
Support Double
w/P02 Boss
for Wooden
Panels and Shelves
w/P02 Boss
for Wooden
Panels and Shelves
P02
Boss
for Supports
use with
#10 Screw
for Supports
use with
#10 Screw
CS05
Support Single
for 6mm Rod
for Hanging
Horizontal Rods
for 6mm Rod
for Hanging
Horizontal Rods
CS06
Support Double
for 6mm Rod
for Hanging
Horizontal Rods
for 6mm Rod
for Hanging
Horizontal Rods
CS09
Support
for 6mm Rod
for Hanging
Horizontal Rods
for 6mm Rod
for Hanging
Horizontal Rods
KCS03/CT01
Support Single
w/CT01 Toggle
for Aluminum
Frames
w/CT01 Toggle
for Aluminum
Frames
KCS04/CT01
Support Double
w/CT01 Toggle
for Aluminum
Frames
w/CT01 Toggle
for Aluminum
Frames
CF125
Hook/Support
for any
Hanging Item
Hook/Support
for any
Hanging Item
Note: Use the CS03 and CS04 specialty supports with boss for mounting picture frames, large wood frames and panels, or any item fitted with a P02 boss and screw. Use the KCS03/CT01 and KCS04/CT01 fittings supplied with special toggles to hold aluminum frames.
Other Accessories
BC8
Replacement Cable
w/Top Crimp
8M (26′-2′′)
Long
w/Top Crimp
8M (26′-2′′)
Long
R500
6mm Rod
Threaded
0.5M (1′ 7-11/16′′)
Long
Threaded
0.5M (1′ 7-11/16′′)
Long
R1000P
6mm Rod
Non-Threaded
1.0M (3′ 3-3/8′′)
Long
Non-Threaded
1.0M (3′ 3-3/8′′)
Long
R1500
6mm Rod
Threaded
1.5M (4′ 11-1/16′′)
Long
Threaded
1.5M (4′ 11-1/16′′)
Long
REC
Decorative
End Cap
for 6mm
Rods
End Cap
for 6mm
Rods

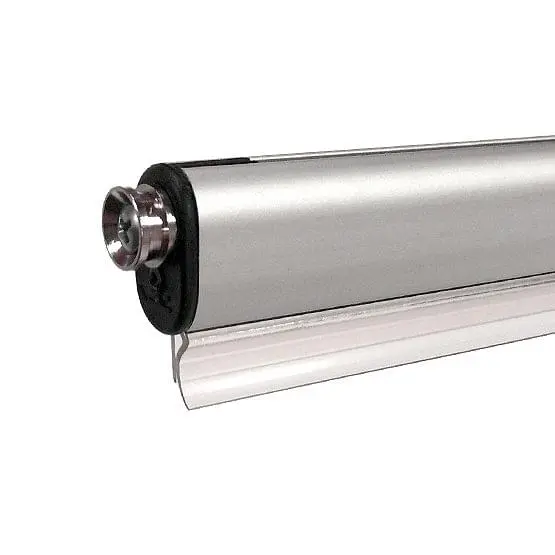

HRAG400R
Graphic Holder
w/Gripper
up to 80 points
thick (3/32′′, 2 mm)
w/Gripper
up to 80 points
thick (3/32′′, 2 mm)
Note: Rods are available in standard sizes such as 0.5m (1′ 7-11/16″), 1m (3′ 3-1/32″), and 1.5m (4′ 11-1/16″). Use threaded rods to create longer lengths — join two or more rods together to make any size. Once screwed together the rods look like a continuous rod. Cut the rod with a hack saw at the bottom to achieve the overall required length. Please note that end caps for 10mm diameter rods require threads to fit and you will not be able to use them if rods are cut to a custom sizes.
Use the info/poster display accessories to display information, certificates, photos, posters, signage, and much more. Cable suspended holders and frames are relatively quick and easy to install and update… Read More ❯

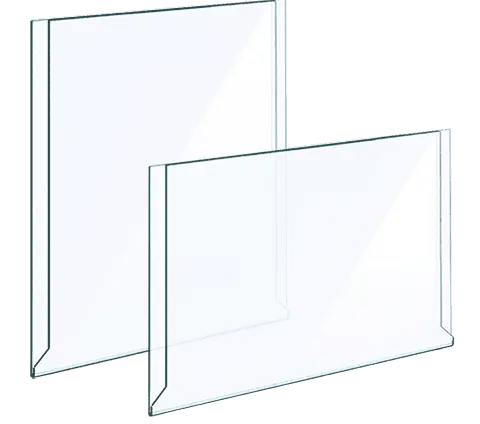

Acrylic Easy Access Info/Poster Holders

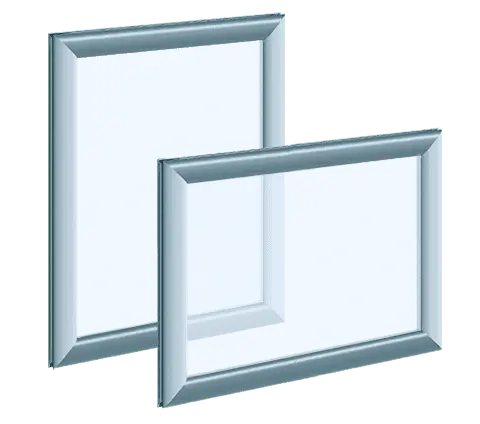

Top-Load Aluminum Frames

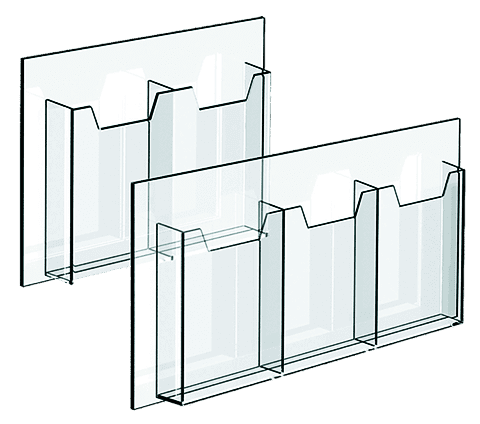

Literature holders are available in single or multi-pocket styles and come in either portrait or landscape orientation. Use to display publications, leaflets, flyers, brochures, magazines, books, or other promotional material… Read More ❯

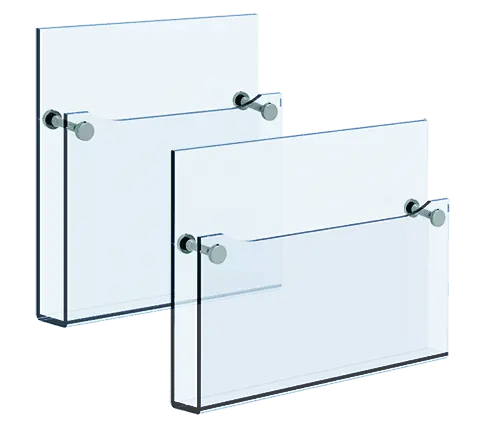

Acrylic Single/Multi-Pocket Magazine Holders

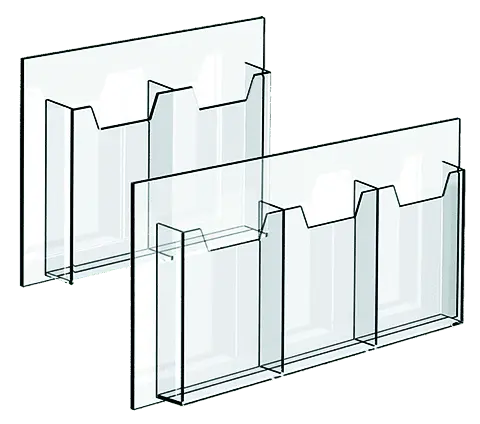

Acrylic Single/Multi-Pocket Brochure Holders

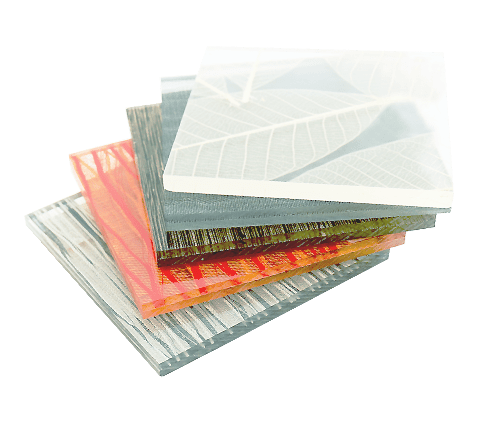

A wide range of acrylic resin sheets — available in clear, non-glare, frost, color, textured, and natural decors for use with cable/rod suspension systems. Use to create graphic panels, privacy screens, and partitions… Read More ❯

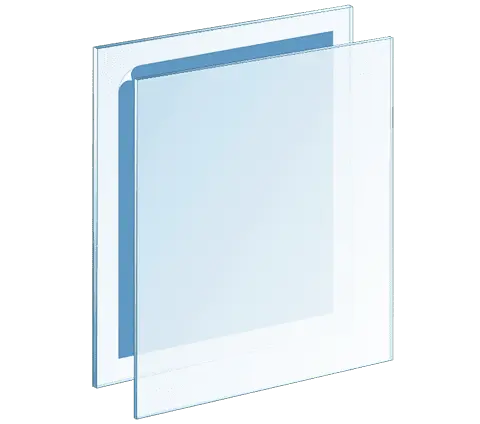

Acrylic Frameless Panels for Posters and Graphics

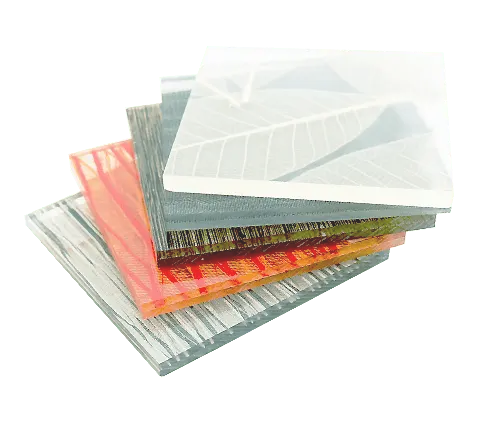

Resin Panels for Partitions and Screens
Display Solutions & Ideas
Cable Track Suspended Displays
A versatile solution for displaying posters and graphics, suspended on cables fitted between ceiling-to-floor or wall tracks.
Cable/Rod Picture Hangings
A simple solution for displaying framed artworks and photographs that require items to be easily moved or replaced.
Modular Display Stands
Create an instant floor-standing presentation to display signs, posters, literature, large format graphics, or merchandise.
Cable/Rod Suspended Partitions
Cable/rod suspended screens and dividers. Individual panels can be fully customized using color, frosted or textured acrylic.
